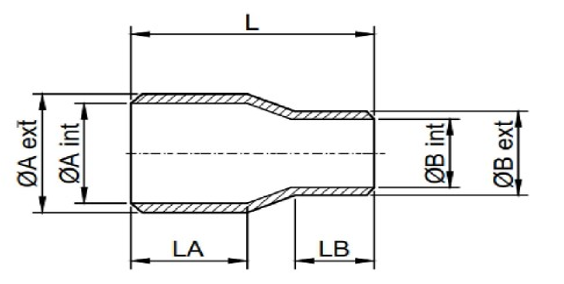

| Código / Tabla | Calibre A (entrada) | Calibre B (salida) | ϕA ext (in) | ϕA int (in) | ϕB ext (in) | ϕB int (in) | L (in) | LA (in) | LB (in) |
|---|---|---|---|---|---|---|---|---|---|
| REDUCCION 1000 - 750 | 1000 | 750 | 1.56 | 1.33 | 1.36 | 1.13 | 4.72 | 2.09 | 2.09 |
| REDUCCION 1000 - 600 | 1000 | 600 | 1.56 | 1.33 | 1.21 | 1.02 | 4.72 | 2.09 | 2.09 |
| REDUCCION 1000 - 500 | 1000 | 500 | 1.56 | 1.33 | 1.11 | 0.93 | 4.13 | 2.09 | 2.6 |
| REDUCCION 1000 - 350 | 1000 | 350 | 1.56 | 1.33 | 0.96 | 0.77 | 4.13 | 2.09 | 2.6 |
| REDUCCION 1000 - 250 | 1000 | 250 | 1.56 | 1.33 | 0.8 | 0.65 | 4.13 | 2.09 | 2.6 |
| REDUCCION 1000 - 3/0 | 1000 | 3/0 | 1.56 | 1.33 | 0.67 | 0.53 | 4.13 | 2.09 | 2.6 |
| REDUCCION 750 - 600 | 750 | 600 | 1.36 | 1.13 | 1.21 | 1.02 | 4.72 | 2.09 | 2.09 |
| REDUCCION 750 - 500 | 750 | 500 | 1.36 | 1.13 | 1.11 | 0.93 | 4.13 | 2.09 | 2.6 |
| REDUCCION 750 - 350 | 750 | 350 | 1.36 | 1.13 | 0.96 | 0.77 | 4.13 | 2.09 | 2.6 |
| REDUCCION 750 - 250 | 750 | 250 | 1.36 | 1.13 | 0.8 | 0.65 | 4.13 | 2.09 | 2.6 |
| REDUCCION 750 - 3/0 | 750 | 3/0 | 1.36 | 1.13 | 0.67 | 0.53 | 4.13 | 2.09 | 2.6 |
| REDUCCION 600 - 500 | 600 | 500 | 1.21 | 1.02 | 1.11 | 0.93 | 4.13 | 2.09 | 2.6 |
| REDUCCION 600 - 350 | 600 | 350 | 1.21 | 1.02 | 0.96 | 0.77 | 4.13 | 2.09 | 2.6 |
| REDUCCION 600 - 250 | 600 | 250 | 1.21 | 1.02 | 0.8 | 0.65 | 4.13 | 2.09 | 2.6 |
| REDUCCION 600 - 3/0 | 600 | 3/0 | 1.21 | 1.02 | 0.67 | 0.53 | 4.13 | 2.09 | 2.6 |
| REDUCCION 500 - 350 | 500 | 350 | 1.11 | 0.93 | 0.96 | 0.77 | 3.74 | 1.57 | 2.6 |
| REDUCCION 500 - 250 | 500 | 250 | 1.11 | 0.93 | 0.8 | 0.65 | 3.74 | 1.57 | 2.6 |
| REDUCCION 500 - 3/0 | 500 | 3/0 | 1.11 | 0.93 | 0.67 | 0.53 | 3.74 | 1.57 | 2.6 |
| REDUCCION 350 - 250 | 350 | 250 | 0.96 | 0.77 | 0.8 | 0.65 | 3.74 | 1.57 | 2.6 |
| REDUCCION 350 - 3/0 | 350 | 3/0 | 0.96 | 0.77 | 0.67 | 0.53 | 3.74 | 1.57 | 2.6 |
| REDUCCION 250 - 3/0 | 250 | 3/0 | 0.8 | 0.65 | 0.67 | 0.53 | 3.74 | 1.57 | 2.6 |
