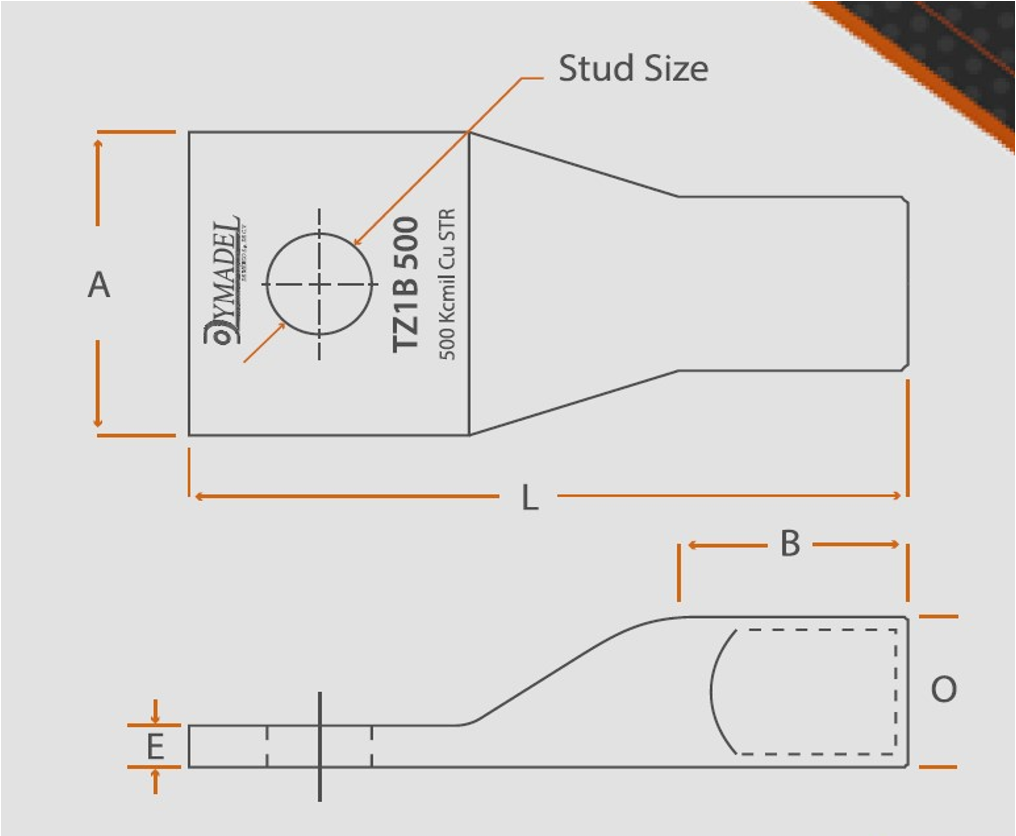

| Código Catálogo | Medida del conductor | L (in) | B (in) | E (in) | A (in) | O.D. (in) | Longitud tira (in) |
|---|---|---|---|---|---|---|---|
| TZ1B - 1/0 | 1/0 AWG | 2.95 | 1.1 | 0.13 | 0.74 | 0.54 | 0.9 |
| TZ1B - 2/0 | 2/0 AWG | 2.95 | 1.1 | 0.13 | 0.8 | 0.56 | 0.9 |
| TZ1B - 3/0 | 3/0 AWG | 2.95 | 1.1 | 0.13 | 0.98 | 0.67 | 0.9 |
| TZ1B - 4/0 | 4/0 AWG | 2.95 | 1.1 | 0.15 | 1.02 | 0.24 | 0.9 |
| TZ1B - 250 | 250 KCMIL | 3.54 | 1.38 | 0.15 | 1.19 | 0.29 | 1.18 |
| TZ1B - 350 | 350 KCMIL | 3.94 | 1.5 | 0.2 | 1.4 | 0.51 | 1.3 |
| TZ1B - 500 | 500 KCMIL | 3.94 | 1.5 | 0.18 | 1.65 | 0.72 | 1.3 |
| TZ1B - 600 | 600 KCMIL | 4.13 | 1.69 | 0.19 | 1.85 | 0.89 | 1.49 |
| TZ1B - 750 | 750 KCMIL | 4.53 | 1.69 | 0.26 | 2.07 | 1.46 | 1.49 |
| TZ1B - 800 | 800 KCMIL | 4.72 | 1.93 | 0.29 | 2.16 | 1.8 | 1.73 |
| TZ1B - 1000 | 1000 KCMIL | 4.92 | 1.93 | 0.22 | 2.3 | 1.46 | 1.73 |
